David R. Whitney

Savonarola Chairs

savonarola-f1

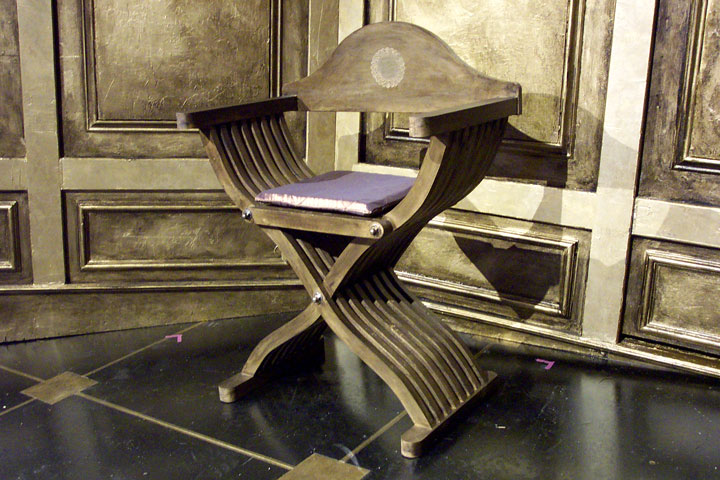

For Volpone, I built four identical Savonarola chairs. The designer liked the Savonarola style, but wanted to contemporize them to match the look and feel of the overall design.

savonarola-r1

This chair, by Design Toscano, was one of the research photos showing the traditional Savonarola chair.

savonarola-r2

This is a designer sketch showing how he wanted to contemporize the style.

Based on the research pictures and conversations with the designer, I drew a 3D model of the chair using Google SketchUp. Drawing the chair in 3D allowed me to virtually construct each piece before cutting a single board.

savonarola-c1

The most time consuming part of the construction was cutting the legs. Once I gridded, cut, and sanded the template, each leg had to be traced, cut, and flush-trim routed to size. The seat, arms, legs, and back were cut with the same process.

savonarola-c2

After all the pieces were cut, they were base coated. The legs and seat pieces were then assembled using 3/8″ threaded rod through pre-drilled holes at the joints, capped on each end with acorn nuts.

savonarola-c3

Pictured here (upside-down) is the chair with the legs fully attached to the seat.

savonarola-c4

The arms and feet were attached next.

savonarola-c5

And finally, the back.

savonarola-c6

The four chairs together, before final paint.

savonarola-f2

Two of the completed chairs, painted gold to match the set, each with a custom pillow.
